Filament Dry Storage and Feed System Installation

Model [] AON-M2 [] AON-M2 2020 [] AON M2+ [] AON M2+ (CE)
Category [] Installation [ ] Operation [ ] Maintenance

Summary

The procedure that follows gives instructions on how to install the Filament Dry Storage and Feed System (dry box) assembly onto the AON3D machine.

Estimated time: 60-90 minutes

Two Filament Dry Storage and Feed Systems (dry boxes) can be installed on the AON-M2 machines.

The advantages of a Filament Dry Storage and Feed System (dry box) is as follows:
• Helps keep the filament clean.
• Helps keep the filament in a dry enclosure.
• Helps control the level of humidity in the filament (with the use of desiccant pouches).
For more information on the importance of filament moisture control, refer to Filament Drying and Moisture Control.

Tools

Qty Description Specification
1 Hex Key 4 mm
1 Hex Key 3 mm
1 Wire Cutters N/A

Parts Information

Qty Part Number Description
1 A-0905-001 Filament Dry Storage and Feed System (Dry Box)
1 . P-0905-001 Backplate, Dry Box Enclosure
1 . P-0905-002 Enclosure, Dry Box
1 . P-0905-003 Bracket, Dry Box Side
1 . P-0905-004 Bracket, Machine Side
1 . P-0905-005 Feed Tube, Filament (762 mm/30 in)
1 . P-0905-006 Feed Tube, Filament (152 mm/6 in)
1 . 2E6226F6 End Cap, Dry Box Spindle
2 . 3F798770 Fitting, Bulkhead Union, Tube (6 mm)
1 . 71CA1286 Spindle, Dry Box
2 . 868BE1BE Foot, Adjustable Low-Profile, Dry Box
1 . 919B30F4 Collar, Dry Box Spindle
2 . 931A1782 Dry Box Plug (6 mm)
1 . CAAA0622 Screw Connection, Dry Box
4 . HW-BHCS-M5-10 Screws, Dry Box Enclosure
A/R C-000001 Molecular Sieve Desiccant 4A - 2/Pk (300g)

Please reach out to our Customer Success team at help@aon3d.com for genuine AON3D replacement part(s) inquiries.

AON3D recommends that one Filament Dry Storage and Feed System (dry box) be installed for each toolhead.

The Filament Dry Storage and Feed System (dry box) can have an opaque or a transparent lid.

Personal Protective Equipment

Qty Description Minimum Specification
1 Safety Eyewear ANSI/ISEA Z87.1
1 Safety Footwear EN ISO 20345 or ASTM F2413
A/R Nitrile Gloves ISO 2859-1 or ASTM D6319

Prepare the Machine

  1. Remove the filament from the extruder(s) and feed path(s). Refer to Replace Filament.
  2. Push the E-stop button.
  3. Turn the power OFF with the ON/OFF switch found on the rear panel of the machine.
  4. Wait until the build chamber, bed and hot ends are at room temperature.

Inspect the Dry Box Enclosure Components

  1. Open the dry box package and make sure that the components that follow are present:
    • One enclosure, dry box
    • One backplate, dry box enclosure (pre-installed in the dry box enclosure)
    • One bracket, dry box side (pre-installed on the dry box enclosure)
    • One spindle, dry box (pre-installed in the dry box enclosure)
    • One collar, dry box spindle (pre-installed on the dry box spindle)
    • One end cap, dry box spindle (pre-installed in the dry box spindle)
    • One bracket, machine side
    • One feed tube, filament (762 mm/30 in)
    • One feed tube, filament (152 mm/6 in)
    • Two fitting, bulkhead union, tube (6 mm)
    • Two foot, adjustable low-profile, dry box
    • Two dry box fitting plug (6 mm)
    • One screw connection, dry box
    • Four screws, dry box enclosure.

Remove the Filament Spool and Filament Spool Holders

Wait until all machine components are at room temperature before you continue. Some machine components can be hot if the machine was recently used. Failure to do so can cause injuries.

Remove Spool Brackets

  1. Lift up the filament spool and remove the spool holder tube (1).
    • Set the filament spool and the spool holder tube (1) aside.
  2. Use the 3 mm hex key to remove the four screws (3) that hold the two spool holder brackets (2).
    • Set the two spool holder brackets (2) and the four screws (3) aside.
  3. Do steps 1 and 2 for the adjacent side, if necessary.

Install the Machine and Dry Box Brackets

Install the Machine Bracket

Install Machine Bracket

  1. Install the machine hanger bracket (1) onto the rear machine panel as follows:
    1. Align the machine hanger bracket (1) holes to the two top holes that were used to hold the two spool holder brackets. Make sure that the bend of machine hanger bracket (1) points UP.
    2. Manually install the two screws (2) through the machine hanger bracket (1) and into the two top holes of rear panel of the machine.
  2. Use the 3 mm hex key to tighten the two screws (2). Make sure that the two screws (2) are tight.
  3. Do steps 1 and 2 for the adjacent machine hanger bracket (1), if necessary.

Install the Dry Box Enclosure Assemblies

Install Dry Box T0/T1

  1. Carefully install the dry box enclosure assembly onto the machine hanger bracket.
  2. Make sure that the dry box hanger bracket tab (1) and the notch on machine hanger bracket notch (2) engage correctly.
  3. Do steps 1 and 2 to install a dry box enclosure assembly for the adjacent toolhead, if necessary.

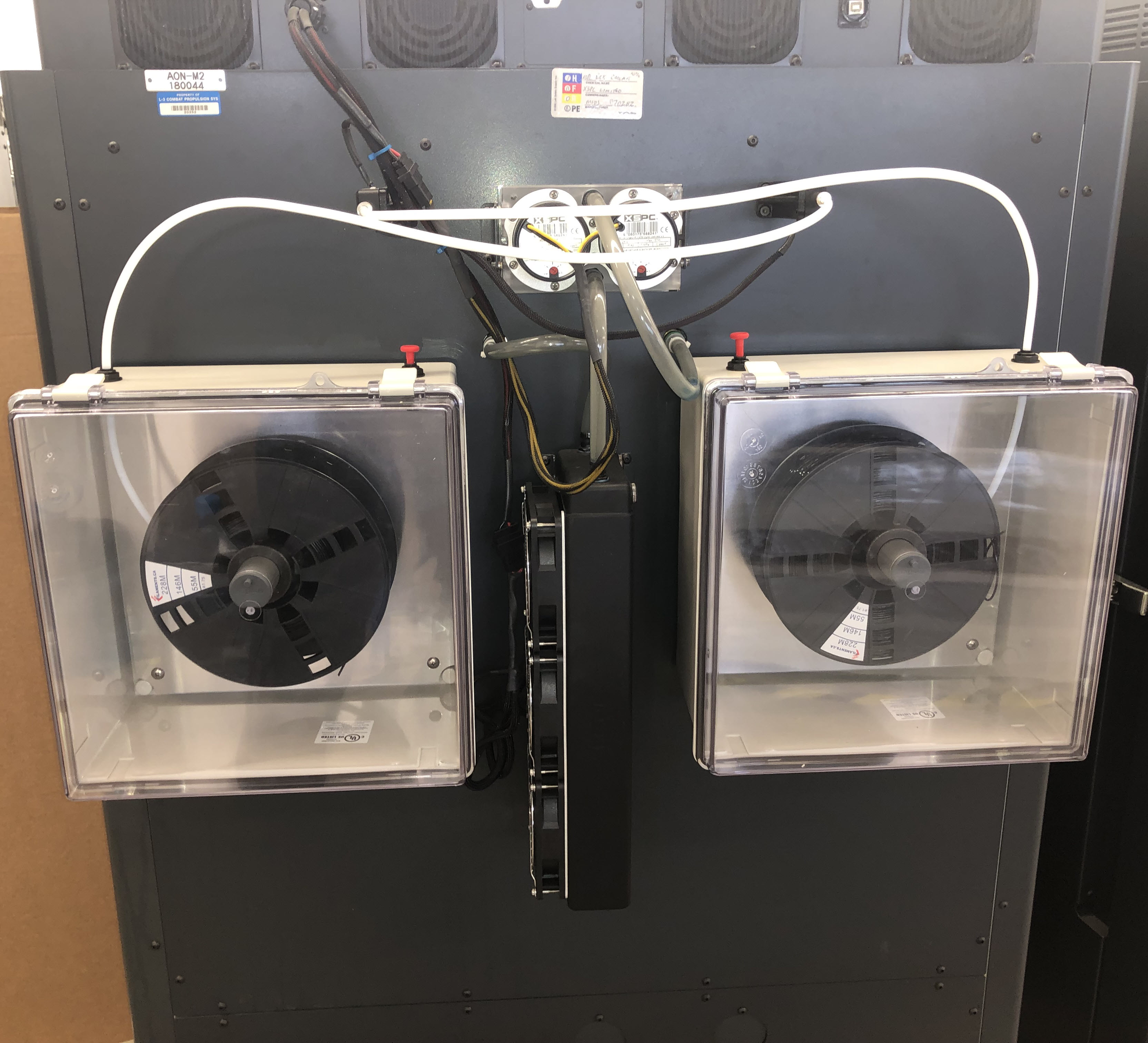

Dry Boxes Installed T0/T1

Prepare the Dry Box Enclosure Assembly

Prepare the Dry Box Enclosure for T0 Operation

When the machine is viewed from the rear, the dry box enclosure on the LEFT must feed the RIGHT toolhead (T0). Failure to do so can cause print failures and/or damage to machine component(s).

Prepare Dry Box for T0

  1. When the machine is viewed from the rear, do the steps that follow for the LEFT dry box assembly:
    1. Remove the plug (1) that is installed in the top LEFT dry box feed tube fitting (2).
    2. Open the lid to the LEFT dry box enclosure.
    3. Push the new 152 mm (6 in) feed tube (3) in the bottom of the LEFT dry box feed tube fitting (2). Lightly pull on the 152 mm (6 in) internal feed tube (3) to make sure it is correctly installed in the dry box feed tube fitting (2).

Prepare the Dry Box Enclosure for T1 Operation

When the machine is viewed from the rear, the dry box enclosure on the RIGHT must feed the LEFT toolhead (T1). Failure to do so can cause print failures and/or damage to machine component(s).

Prepare Dry Box for T1

  1. When the machine is viewed from the rear, do the steps that follow for the RIGHT dry box assembly:
    1. Remove the plug (1) that is installed in the top RIGHT dry box feed tube fitting (2).
    2. Open the lid to the RIGHT dry box enclosure.
    3. Push the new 152 mm (6 in) feed tube (3) in the bottom of the RIGHT dry box feed tube fitting (2). Lightly pull on the 152 mm (6 in) internal feed tube (3) to make sure it is correctly installed in the dry box feed tube fitting (2).

Install the Roll of Filament

Dry Boxes Installed Preview

Filament spool limit dimensions are as follows:
• Largest outside diameter: 305 mm (12 in)
• Smallest inside diameter: 32 mm (1.25 in)
• Largest width: 110 mm (4.33 in).

Install the Roll of Filament for T0 Operation

  1. When the machine is viewed from the rear, do the steps that follow:
    1. Use the 4 mm hex key to loosen the spindle collar screw (1). Remove the spindle collar (2). Spindle Collar T0

      When the machine is viewed from the rear, the roll of filament must be installed as such that the filament unwinds CLOCKWISE into the internal 152 mm (6 in) feed tube. Failure to install the filament correctly into the feed tube can cause print failures and/or cause damage to machine component(s).

      Make sure that filament is unrolled from the spool without tangles. Filament tangles will cause print failures and/or cause damage to machine component(s).

      Install Roll Filament T0
    2. Install the roll of filament onto the filament spindle (3). Push the roll of filament to the rear of the dry box. Make sure that the roll of filament is correctly installed.
    3. Install the the spindle collar (2) onto the filament spindle (3). Put the spindle collar (2) approximately 7 mm (one-quarter inch) away from the roll of filament.
    4. Use the 4 mm hex key to tighten the collar screw (1). Do not tighten too much.
  2. When the machine is viewed from the rear, install the 762 mm (30 in) feed tube as follows:
    1. Push the 762 mm (30 in) feed tube (4) into the top of the LEFT dry box feed tube fitting (5). Lightly pull on the 762 mm (30 in) feed tube (4) to make sure it is correctly installed in the dry box feed tube fitting (5).
    2. Push the other end of the 762 mm (30 in) feed tube into the RIGHT (T0) filament sensor fitting (6). Lightly pull on the 762 mm (30 in) feed tube to make sure it is correctly installed in the filament sensor fitting (6).

      Please reach out to our Customer Success team at help@aon3d.com about SB-2020-03 if the filament sensor fitting does not have the correct feed tube diameter.

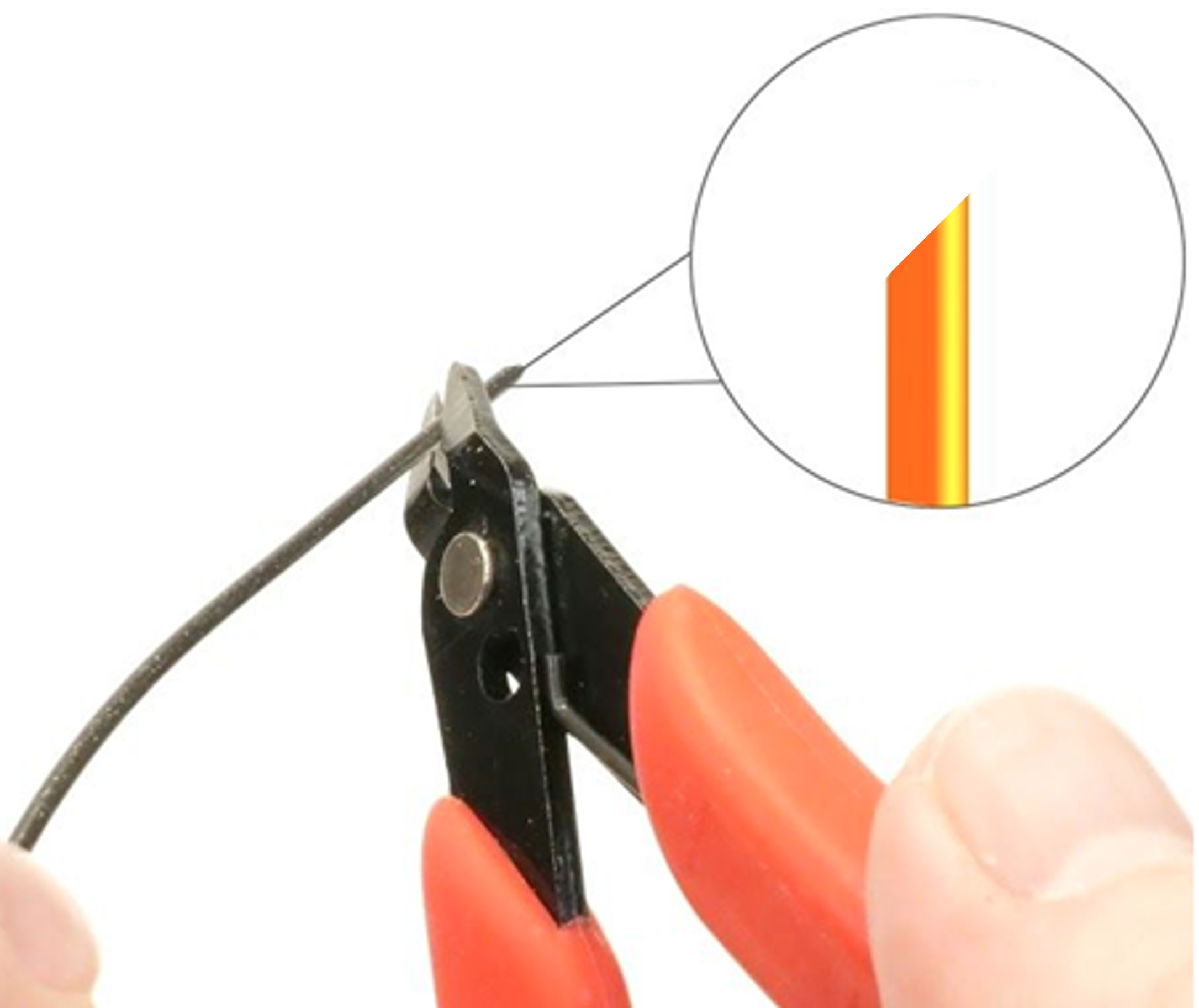

  3. Use the wire cutter to cut a 45-degree angle at the end of the filament. Cut Filament for Entry
  4. Put the end of the filament into the 152 mm (6 in) internal feed tube.
  5. Carefully push the filament through the feed path until it exits the feed tube found inside the build chamber.

    AON3D recommends that two small desiccant pouches be installed in the dry box enclosure to prevent moisture.

  6. Make sure that you remove the tools from the dry box enclosure.
  7. Close the lid to the LEFT dry box enclosure.
  8. Load the filament into the extruder. Refer to Load Filament.

Install the Roll of Filament for T1 Operation

  1. When the machine is viewed from the rear, do the steps that follow:
    1. Use the 4 mm hex key to loosen the spindle collar screw (1). Remove the spindle collar (2). Spindle Collar T1

      When the machine is viewed from the rear, the roll of filament must be installed as such that the filament unwinds COUNTERCLOCKWISE into the internal 152 mm (6 in) feed tube. Failure to install the filament correctly into the feed tube can cause print failures and/or cause damage to machine component(s).

      Make sure that filament is unrolled from the spool without tangles. Filament tangles will cause print failures and/or cause damage to machine component(s).

      Install Roll Filament T1
    2. Install the roll of filament onto the filament spindle (3). Push the roll of filament to the rear of the dry box. Make sure that the roll of filament is correctly installed.
    3. Install the the spindle collar (2) onto the filament spindle (3). Put the spindle collar (2) approximately 7 mm (one-quarter inch) away from the roll of filament.
    4. Use the 4 mm hex key to tighten the collar screw (1). Do not tighten too much.
  2. When the machine is viewed from the rear, install the 762 mm (30 in) feed tube as follows:
    1. Push the 762 mm (30 in) feed tube (4) into the top of the RIGHT dry box feed tube fitting (5). Lightly pull on the 762 mm (30 in) feed tube (4) to make sure it is correctly installed in the dry box feed tube fitting (5).
    2. Push the other end of the 762 mm (30 in) feed tube into the LEFT (T1) filament sensor fitting (6). Lightly pull on the 762 mm (30 in) feed tube to make sure it is correctly installed in the filament sensor fitting (6).

      Please reach out to our Customer Success team at help@aon3d.com about SB-2020-03 if the filament sensor fitting does not have the correct feed tube diameter.

      Install 762 mm Feed Tube T1
  3. Use the wire cutter to cut a 45-degree angle at the end of the filament. Cut Filament for Entry
  4. Put the end of the filament into the 152 mm (6 in) internal feed tube.
  5. Carefully push the filament through the feed path until it exits the feed tube found inside the build chamber.

    AON3D recommends that two small desiccant pouches be installed in the dry box enclosure to prevent moisture.

  6. Make sure that you remove the tools from the dry box enclosure.
  7. Close the lid to the RIGHT dry box enclosure.
  8. Load the filament into the extruder. Refer to Load Filament.

Test and Return To Service

  1. Turn the power ON with the ON/OFF switch found on the rear panel of the machine.
  2. Release the E-stop button.
  3. Home XYZ.
