Inspect and Clean Vacuum Circuit Filter Element

Model [ ] AON-M2 [ ] AON-M2 2020 [] AON M2+ [] AON M2+ (CE)
Category [] Preventive [ ] Corrective

Summary

The procedure that follows gives instructions on how to clean the vacuum filter element for the cooling circuit.

Estimated time: 30 minutes

Do not operate the AON3D machine in an area where the quality of air is not clean. Make sure that the work area is clean at all times. A clean work area will help increase the quality of air that is used to operate the vacuum circuit in the AON3D machine.

Tools

Qty Description Specification
1 Broom and Pan N/A
1 Air Compressor 15 psi (maximum)
1 Wire Brush Clean, soft bristle
A/R Rags Lint-free
A/R Isopropyl Alcohol 99%

Parts Information

Qty Part Number Description
1 CD56B2D7 Vacuum Filter Element
A/R Rags Lint-free

Please reach out to our Customer Success team at help@aon3d.com for genuine AON3D replacement part(s).

Personal Protective Equipment

Qty Description Minimum Specification
1 Safety Eyewear ANSI/ISEA Z87.1
A/R Face Mask Respiratory
A/R Nitrile Gloves ISO 2859-1 or ASTM D6319

Prepare the Machine

Make sure that there are no prints on the build print surface. Remove print(s) before the procedure that follows is started. Failure to do so can cause a collision and cause damage to the machine component(s).

  1. Home XYZ.
  2. Use the Graphical User Interface (GUI)/web browser to power OFF the vacuum pump.
  3. Turn the vacuum circuit power OFF at the ON/OFF switch found on the rear panel of the machine.
  4. Push the E-stop button.
  5. Open the build chamber door.
  6. Wait until the build chamber, build platform and hot ends are at room temperature.

Vacuum Filter Element

  • Location: The vacuum filter element is in the vacuum filter assembly, which is found on the rear panel of the machine. The vacuum filter assembly must be disassembled to get access to the vacuum filter element.
  • Function: The vacuum filter element collects unwanted materials to prevent loss of negative atmospheric pressure in the vacuum circuit.

Remove and Clean the Vacuum Filter Element

Vacuum Filter Element CC

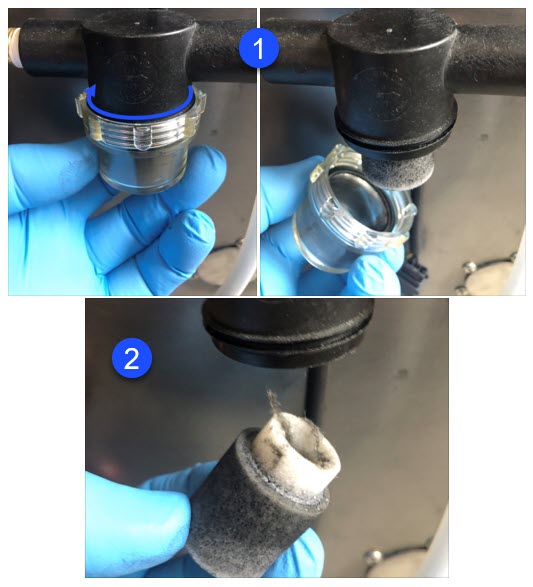

  1. Turn the bottom vacuum filter cover clockwise. Set the bottom vacuum filter cover aside.
  2. Carefully pull on the the vacuum filter element to remove it from the vacuum filter housing.
  3. Use the soft bristle brush, and/or compressed air, to clean the components that follow:
    • The vacuum filter element
    • The vacuum filter cover.
  4. Use the isopropyl alcohol and lint-free rag(s) to clean the components that follow:
    • The vacuum filter element
    • The bottom vacuum filter cover
    • The vacuum filter housing.
  5. Make sure that all components are clean. Do steps 3 and 4 until the filter element is clean.
  6. Inspect the vacuum filter element for rips, holes, and/or tears. Replace, if necessary.

Install the Vacuum Filter Element

• Make sure that the vacuum filter element is correctly installed into the vacuum filter housing. Failure to do so can cause damage to the vacuum circuit and make the machine component(s) operate too hot.
• Make sure that the o-ring is installed in the bottom vacuum filter cover. Failure to do so can cause damages to the vacuum circuit and make the machine component(s) operate too hot.

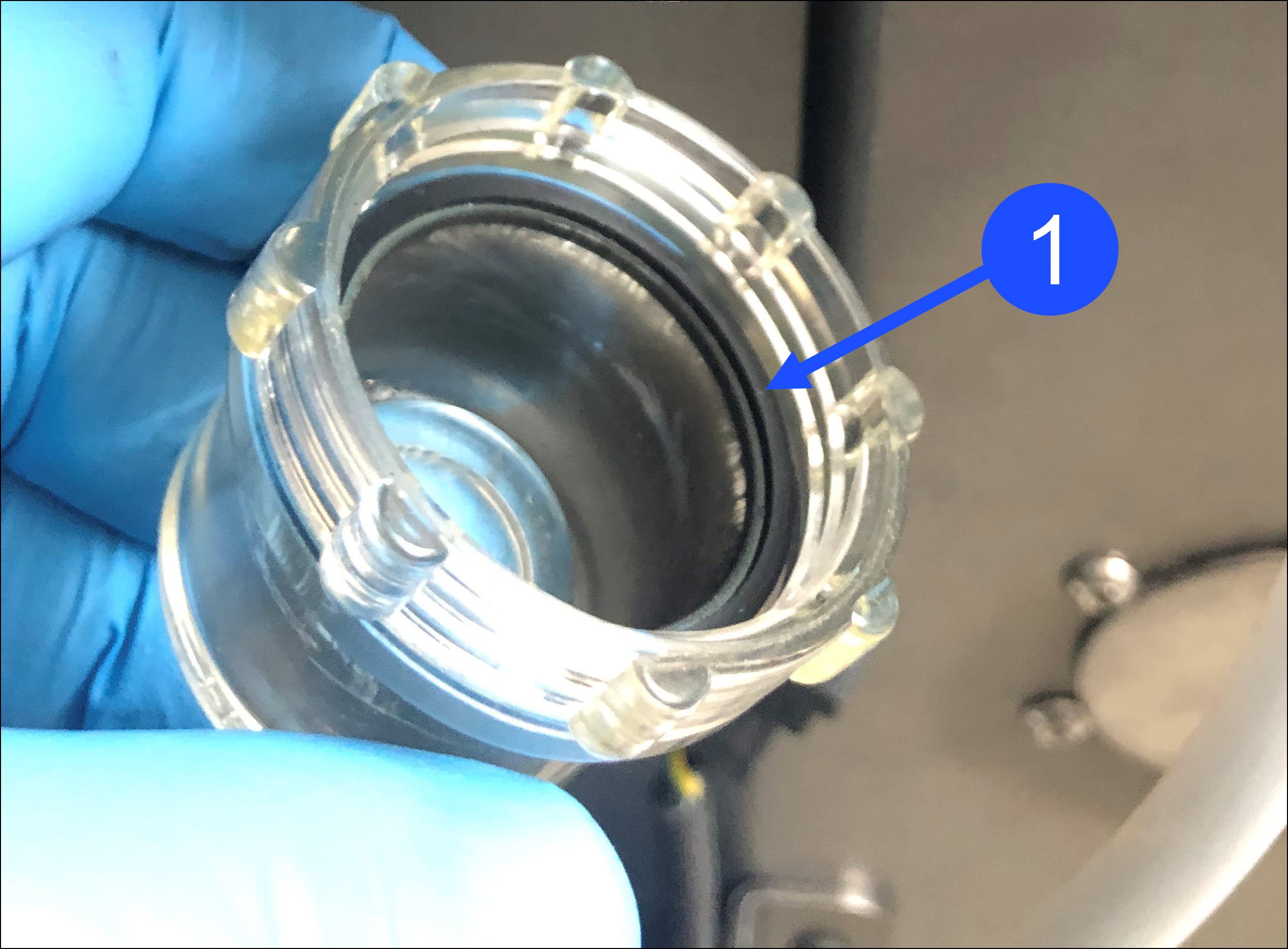

  1. Make sure that the o-ring (1) is correctly installed in the bottom vacuum filter cover. Vacuum Filter Element O-Ring
  2. Install the vacuum filter element into the vacuum filter housing. Make sure that the filter element is correctly install in the vacuum filter housing.

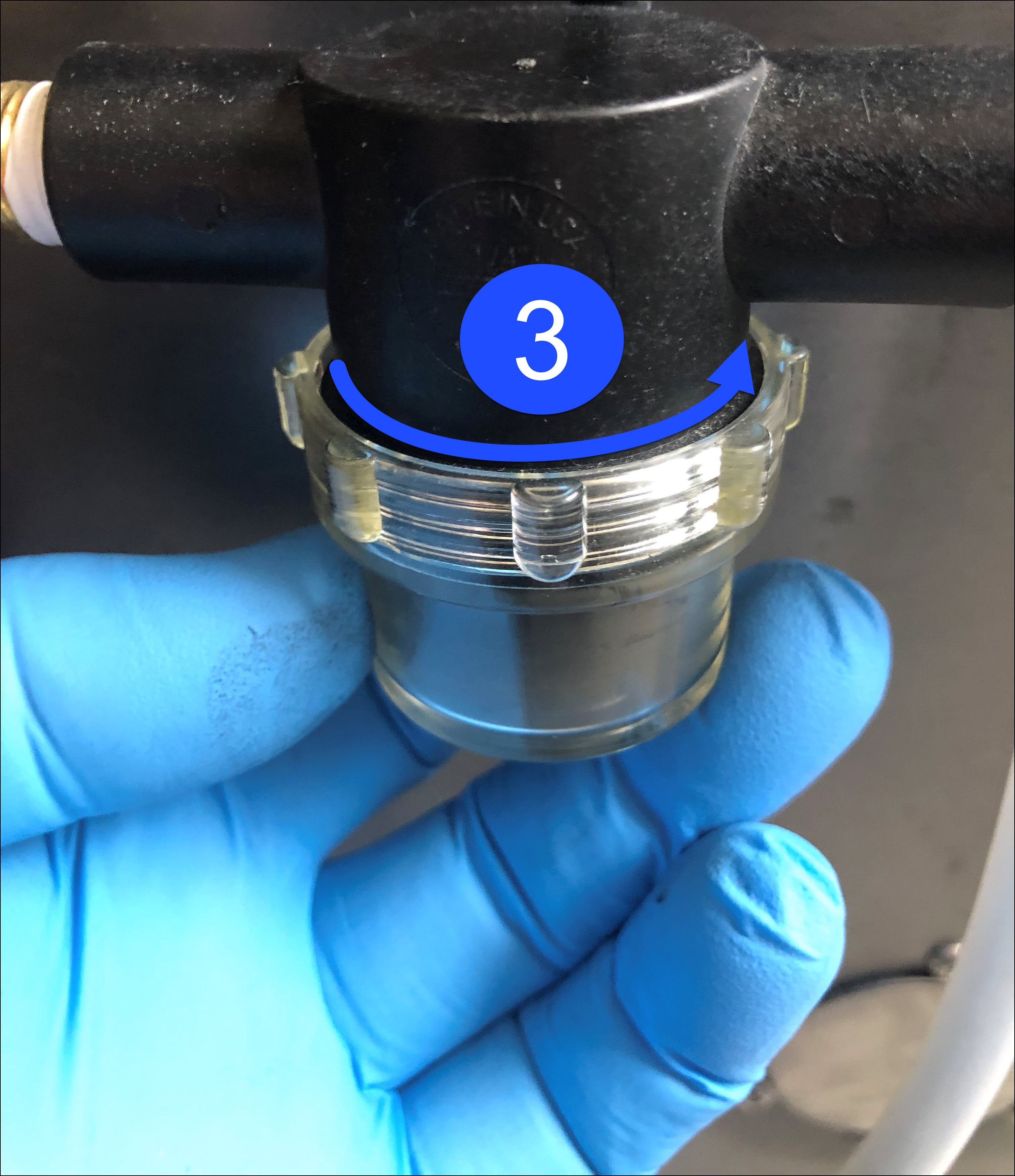

  3. Install the bottom vacuum filter cover onto the vacuum filter housing. Do not tighten too much. Vacuum Filter Assemble

Clean Vacuum Pump Silencer

This section only applies to the AON M2+ (CE).

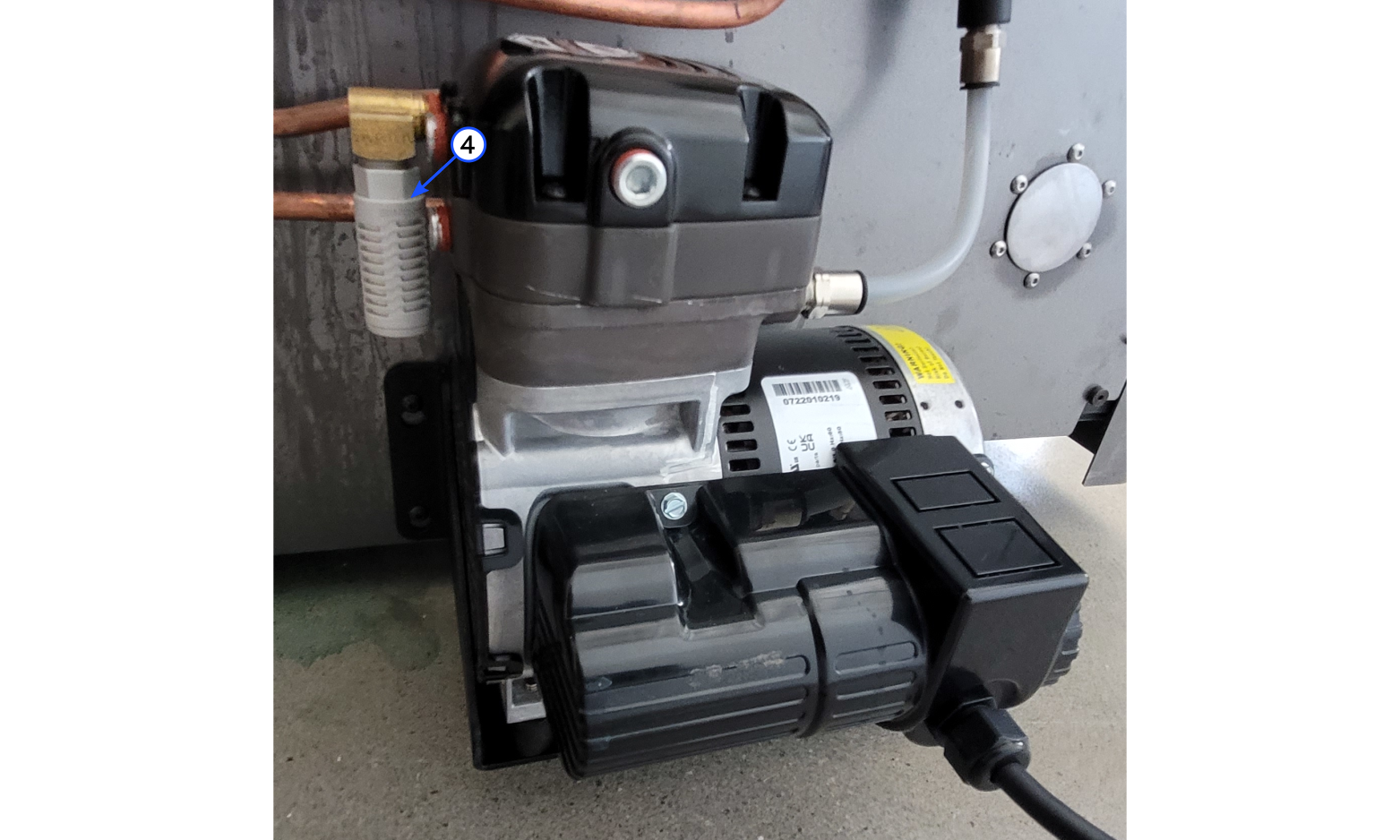

  1. Use a damp lint-free rag to remove contaminants found on the exterior of the vacuum pump silencer (4). Clean Vacuum Pump Silencer

Test and Return to Service

  1. Close the build chamber door.
  2. Release the E-stop button.
  3. Home XYZ.
  4. Turn the vacuum circuit power ON at the ON/OFF switch found on the rear panel of the machine.
  5. Install the build sheet. Refer to Install Build Sheet.

Last modified: September 1, 2022
